GC Run Capacitors

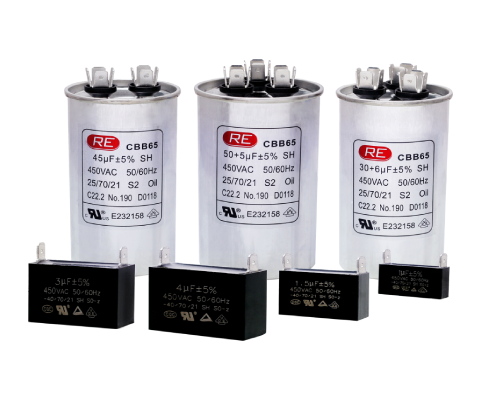

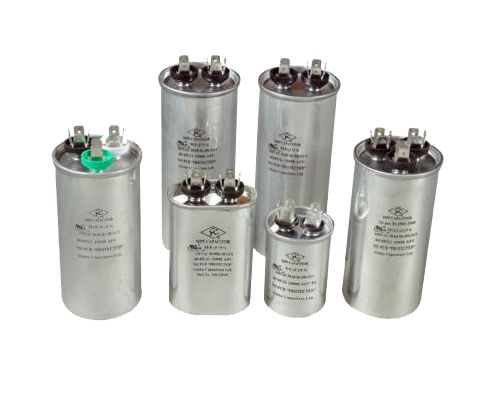

The capacitor is a component which has the ability or “capacity” to store energy in the form of an electrical charge producing a potential difference (Static Voltage) across its plates, much like a small rechargeable battery. The run capacitor is used to improve the running efficiency of a compressor’s motor. The run capacitor is placed in series with the start winding of the compressor and will remain in the circuit as the motor operates. GCS Series are cylindrical / Oval Aluminum case designed incorporating with safety mechanism device, Offering long life and reliable products. These are popular in air conditioners, Washing machines Lighting fixtures, etc.

Feature

Salient Features

• Low dissipation factor
• High insulation resistance
• Internal Protection
• Self – healing properties
• Fault Current -10,000 AFC
• Pressure Sensitive Interrupter (PSI)

Construction

Dielectric – Polypropylene Element-Non inductive type, wound by high speed fully automatic controlled winding machines

Filling – Non polluting filling compound (non P.C.B.).

Case – Housed in high purity Aluminum Cans 0.6 to 0.65 mm thick .

Terminals- Tin-plated steel, Two terminals are provided for single element capacitor, three terminals for dual element capacitor, Quick connect (fast-on ) terminals provided with a detent The minimum thickness is 0.8+ 0.025 mm. All other specifications are in accordance with #250 AMP. Each terminal shall have 2,3 or 4 pins depending upon configuration.

Metal top- Metal top assembly consisting of cover, Washer, Packing Material, Connecting rivets and terminals.

Pressure Sensitive Interrupter / Internal Protection Bridge- Made of UL approved V-0 Self –Extinguishing Plastic with minimum thickness of 2.5mm . Bridge is provided with holes for inserting tips from terminals. Bridge is secured between element and metal top cover.
